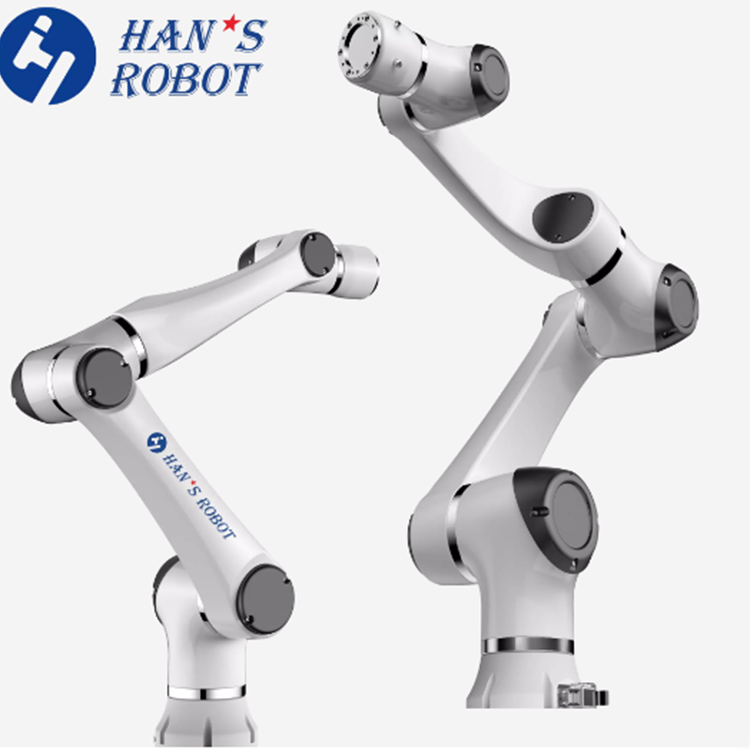

Han'S Elfin Series E3 Pick And Place Cobot With 3kg Payload

Brand Name : HAN'S

Model Number : E3

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 99

Delivery Time : 2 months

Product name : HAN'S Elfin Series E3 pick and place cobot with 3kg payload

Weight : 17kg

Payload : 3kg

Reach : 590mm

Power : 100W in typical cycle

Joint speed : J1-J4 180°/S J5-J6 200°/S

Repeatability : ±0.05mm/±0.03mm(under normal conditions)

control box size : 536*445*319mm

IP classification : IP54/IP66

Working temperature : 0-50℃

Contact Now

Specification


item

Collaborattive robot arm

Applicable Industries

Other

After Warranty Service

Video technical support, Online support, Field maintenance and repair service

Local Service Location

None

Showroom Location

None

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

Ordinary Product

Warranty of core components

1 Year

Core Components

PLC

Condition

New

Place of Origin

Shenzhen, China

Brand Name

HAN'S

Weight

17 kg

Power

200-240V

Certification

CE

Warranty

1 Year



Online support

Type

E3

Weight

17kg

Payload

3kg

Reach

590mm

Power

100W in typical cycle

Joint speed

J1-J4 180°/S J5-J6 200°/S

repeatability

±0.05mm/±0.03mm(under normal conditions)

control box size

536*445*319mm

IP classification

IP54/IP66

Working temperature

0-50℃

Han'S Elfin Series E3 Pick And Place Cobot With 3kg Payload







Packing & Delivery

Cobot HAN'S Elfin Series E3 pick and place robot payload 3kg reach 590mm Collaborative Robot packing with fumigation wooden frame

Company Profile
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
