Safety Valve Pressure Steam Sempell Series S With DIN Flanges Direct Spring-Operated Safety Valve

Brand Name : Sempell

Model Number : Series S Safety Valve

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, L/C, D/A, Western Union

Supply Ability : 10 SETS PER MONTH

Delivery Time : 30-60 WORK DAYS

Packaging Details : WOODEN BOX

Size Inlet : DN 25 - DN 200 / NPS 1 - NPS 8

Pressure rating : PN 10 - PN 500 class 150 - class 2500

Temperature Rangep : 200°C to +700°C -300°F to +1300°F, -450°F to +1000?F

Set pressure : 0.2 bar - 500 bar, 15 - 6000psi

Orifice Diameter : 14 mm - 160 mm, 0.11 in - 26 in

Design : Acc. to EN/DIN or API 526

Body material : 1.0619/SA216 WCB;1.7357/SA217 WC6;1.6220/SA352 LCC;1.4408/SA351 CF8M

Accessories : Cooling spacer, balanced piston, lifting lever, test gag

Application : Steam, gases and liquids

Color : Blue

Contact Now

Safety Valve Pressure Steam Sempell Series S With DIN Flanges Direct Spring-Operated Safety Valve

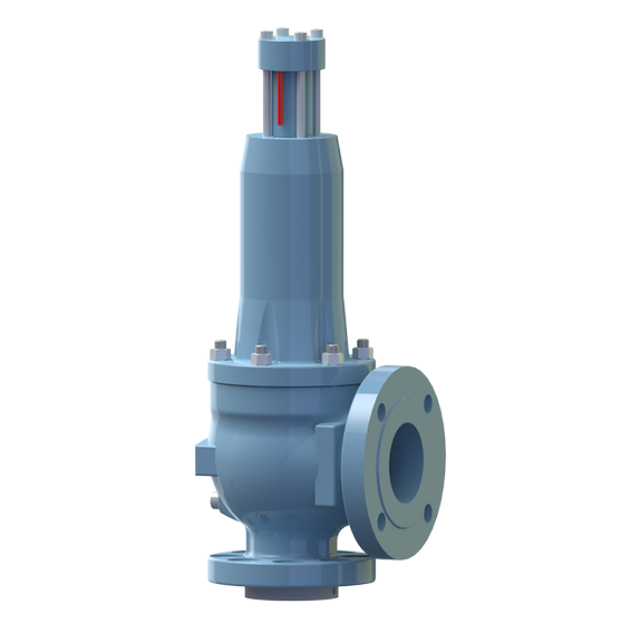

Direct spring-operated safety relief valve with DIN flanges, ASME flanges or welding end connections

Features

• Single trim design for steam, gases and liquids

• Balanced bellows and open bonnet

• Rigid light weight body construction

• Cap design ensures safe and reliable assembly of valve lifting levers

• Locking for hydrostatic test without additional parts, cap top doubles up as gagging device

• Gagged status indicator

• Mechanical lift stop ensures functional stability

• Cooling spacer, position indicator and adjusting ring available

Applications

Type-tested for use with steam, gases and liquids (German TÜV, American NB and Chinese SELO). Available with actuator for use as pneumatic operated safety valve.



Product Description

Safety Valve Pressure Steam Sempell Series S With DIN Flanges Direct Spring-Operated Safety Valve

Specification


item

value

Warranty

1 Year

Type

Temperature & Pressure Relief Valves

Place of Origin

China



Shanghai

Brand Name

Sempell

Model Number

VSE0

Application

General

Power

Electric

Media

Base

Size Inlet

DN 15-DN 25 NPS 1/2 -1

Pressure rating

PN 10- PN 400 class 150 - class 2500

Temperature Rangep

-200°C to +200°C -300°F to +400°F

Set pressure

1 bar-400 bar

Orifice Diameter

7.5mm or 9 mm

Design

Flanges and threads according to DIN, BS and ASME

Body material

1.0619 / A216 WCB 1.4408 / A351 CF8M

Accessories

Soft seat, lifting lever, test gag

Application

thermal relief

Applications
