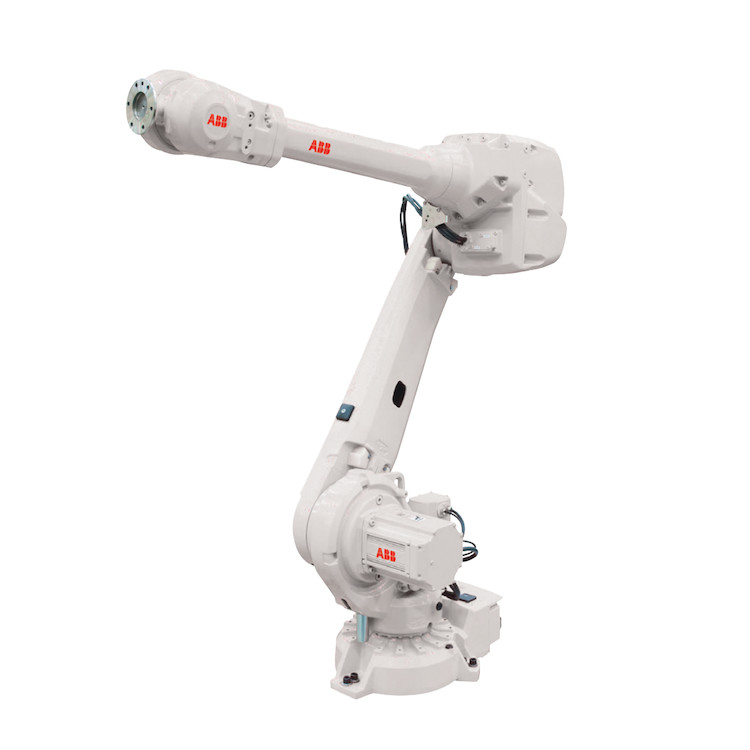

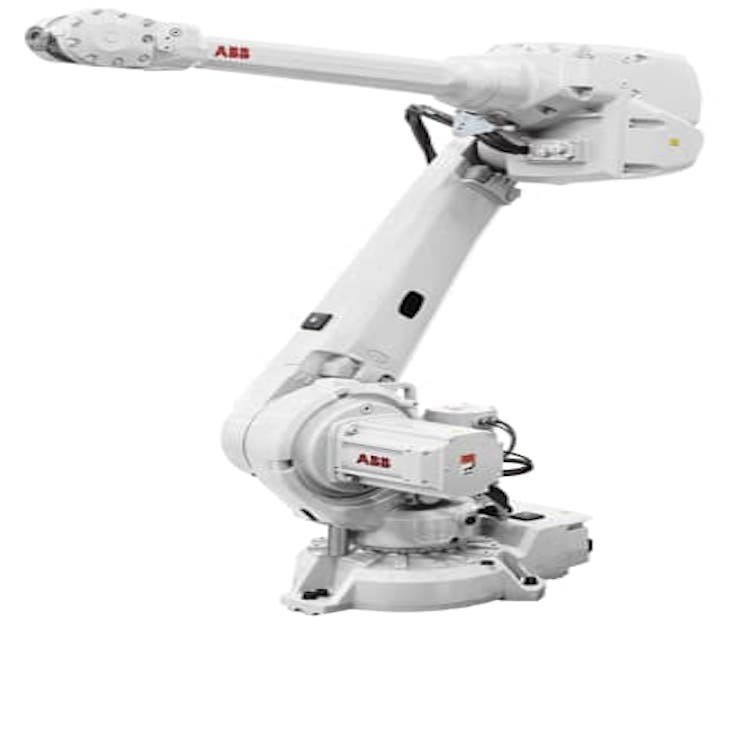

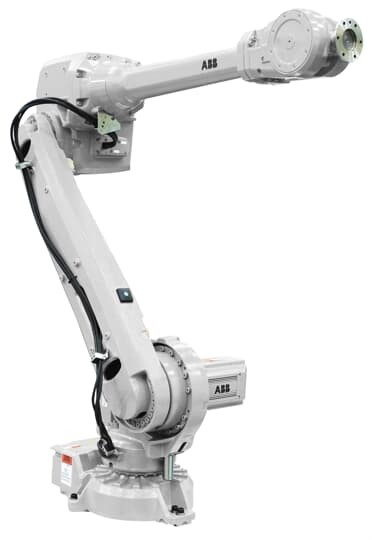

ABB IRB 4600 6 Axis Industrial Robot Arm as Welding Robot Manipulator

Brand Name : ABB

Model Number : ABB IRB4600-45/2.05

Place of Origin : China

MOQ : 1 set

Price : US $40245.00 - 51745.00/ Set

Payment Terms : L/C, T/T

Supply Ability : 100 pieces per month

Delivery Time : 30-60 work days

Packaging Details : ONE ABB large industrial total station robotic 6 axis IRB4600-45/2.05 material handling machine packing with fumigation wooden frame, Total WG:850KG(>VG)

Robot version : IRB 4600-45/2.05

Reach : 2050mm

Payload : 45Kg

Armload : 20Kg

Protection : Standard IP67

Mounting : Floor,shelf,inverted or tilted

Controller : RC5 Single cabinet

Supply voltage : 200-600V,50-60Hz

Robot base : 512x676mm

Position repeatability : 0.05mm

Contact Now

ABB IRB 4600 6 Axis Industrial Robot Arm as Welding Robot Manipulator

Specification

Robot version	Reach(m)	Payload(kg)	Armload(kg)
IRB 4600-60/2.05	2.05	60	20
IRB 4600-45/2.05	2.05	45	20
IRB 4600-40/2.55	2.55	40	20
IRB 4600-20/2.50	2.51	20	11
Number of axes	6+3 external(up to 36 with MultiMove0
Protection	Standard IP67,as option Foundry Plus 2
Mounting	Floor,shelf,inverted or tilted
Controller	IRC5 Single cabinet

Performance(according to ISO 9283)

Robot version	Position repeatability	Path repeatability
IRB 4600-60/2.05	0.06mm	0.46mm
IRB 4600-45/2.05	0.05mm	0.13mm
IRB 4600-40/2.55	0.06mm	0.28mm
IRB 4600-20/2.50	0.05mm	0.17mm

Technical information

Electrical Connections
Supply voltage	200-600V,50-60Hz
Physical
Robot base	512x676mm
Height
IRB 4600-60/2.05	1727mm
IRB 4600-45/2.05	1727mm
IRB 4600-40/2.55	1922mm
IRB 4600-20/2.50	1922mm
Robot weight
IRB 4600-60/2.05	425kg
IRB 4600-45/2.05	425kg
IRB 4600-40/2.55	435kg
IRB 4600-20/2.50	412kg

ABB IRB 4600 6 Axis Industrial Robot Arm as Welding Robot Manipulator

Our Service

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
