FANUC Reach 400mm Payload 3kg 4 Axis Scara Robot for Assembly

Name: FANUC Reach 400mm Payload 3kg 4 Axis Scara Robot for Assembly
Brand: FANUC
Price: 1 USD

Buy cheap FANUC Reach 400mm Payload 3kg 4 Axis Scara Robot for Assembly product

Brand Name : FANUC

Model Number : RS-3iA

Place of Origin : CHINA

MOQ : 1-10

Payment Terms : L/C, T/T

Supply Ability : 99

Delivery Time : 2 months

Controlled axes : 4

Max. payload at wrist : 3kg

Motion range (X, Y) : 400mm, 800mm

Stroke (Z) : 200mm

Mass : 19kg

Installation : Floor, Wall

Matching controller : R-30iB Compact Plus

Input power source capacity : 2kVA

Application : Handling, Assembling

Contact Now

FANUC Robot SR-3iA		SR-3iA
Controlled axes		4
Max. payload at wrist		3kg
Motion range (X, Y)		400mm, 800mm
Stroke (Z)		200mm
Repeatability	J1 + J2 axis	±0.01mm
	J3 stroke	±0.01mm
	J4 axis	±0.004°
Mass		19kg
Installation		Floor, Wall
Matching controller / Input power source capacity		R-30iB Compact Plus / 2kVA
Application		Handling, Assembling

FANUC Reach 400mm Payload 3kg 4 Axis Scara Robot for Assembly

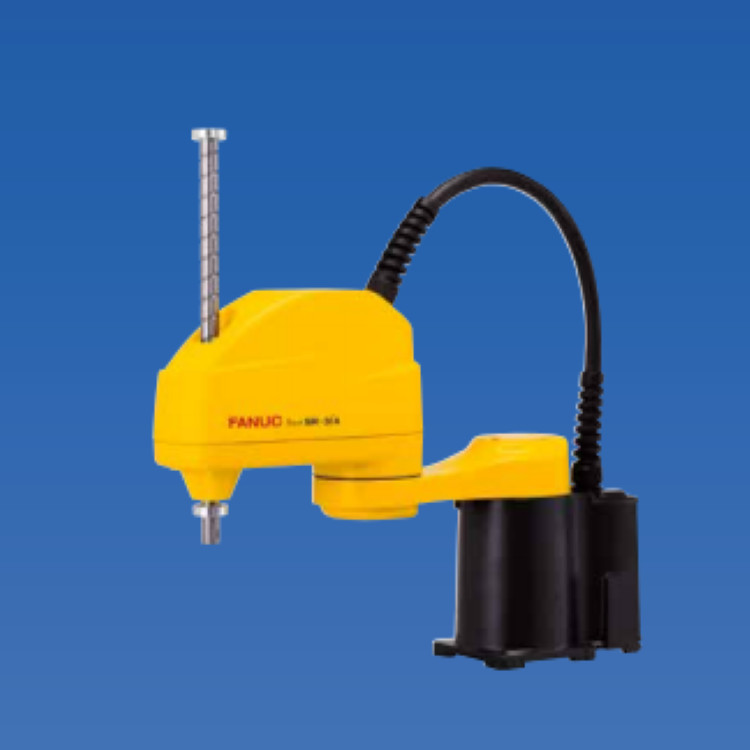

FANUC Robot SR-3iA is SCARA robot whose payload is to 3kg.
The lightweight arm and the most advanced servo technology enable high accuracy and high duty performance. which improves the productivity.

Product Tags:

Reach 400mm Fanuc Robot Arm

Payload 3kg Fanuc Robot Arm

4 Axis Fanuc Robot Arm

FANUC Reach 400mm Payload 3kg 4 Axis Scara Robot for Assembly Images
